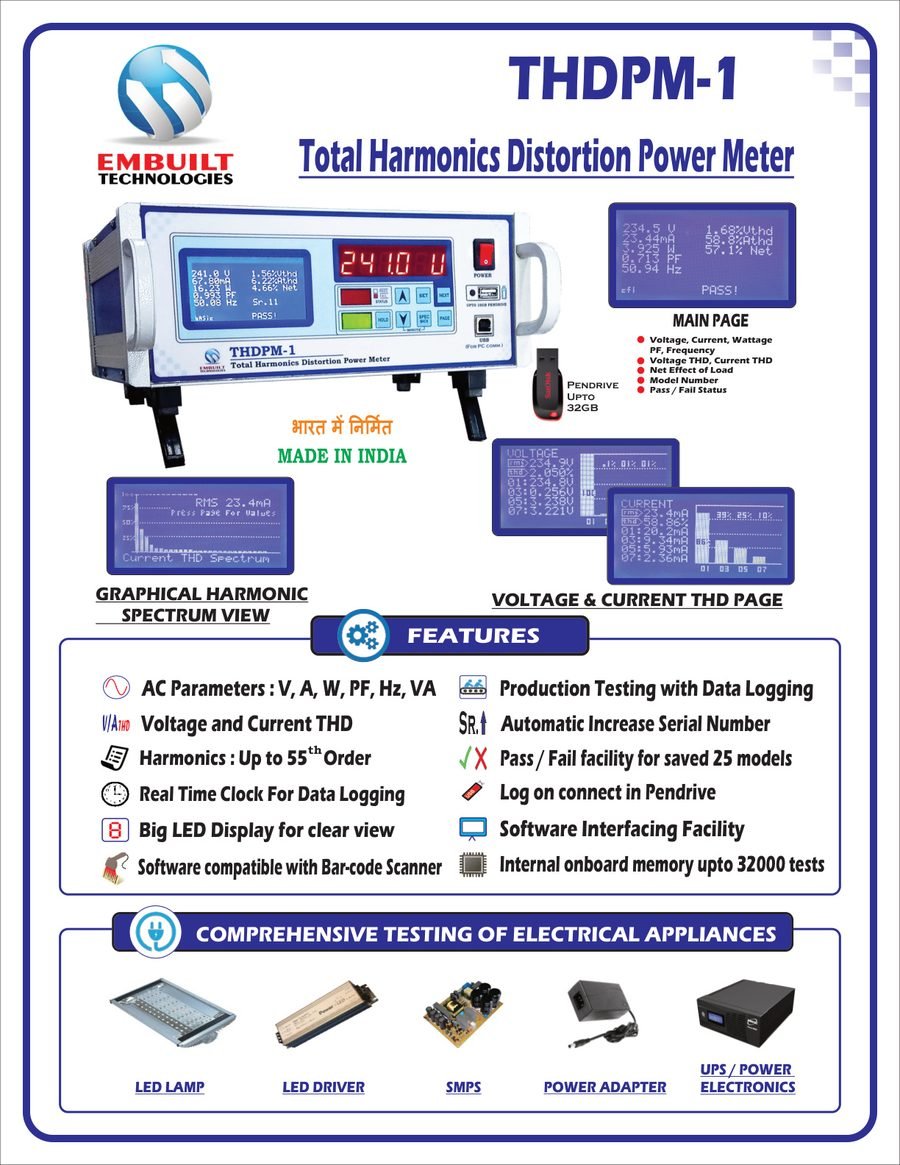

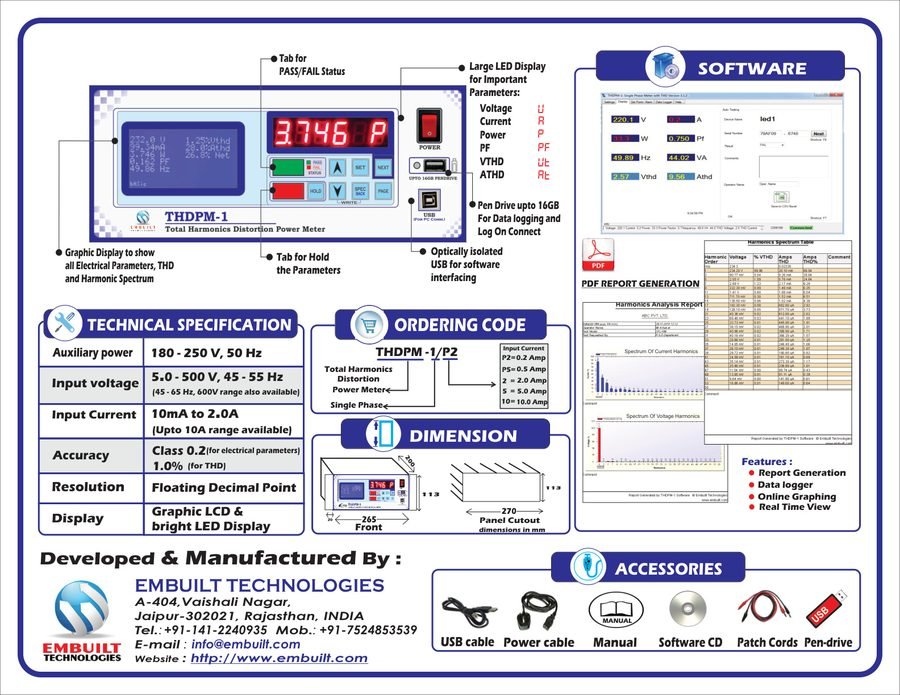

THD Power Meter THDPM-1
Model: THDPM-1
Total Harmonics Distortion power meter for production testing, with a harmonic spectrum view.
Input voltage5.0 – 500 V, 45 – 55 Hz (600 V range available)
Input current10 mA to 2.0 A (other ranges available)
ParametersV, A, W, PF, Hz, VA, voltage THD, current THD
HarmonicsUp to 55th order
