Source Load Connection

The source load connection is easy to do. On one side power source is connected and another side load is connected.

All the measurement is done internally so no need for extra probe or wire required for measurement.

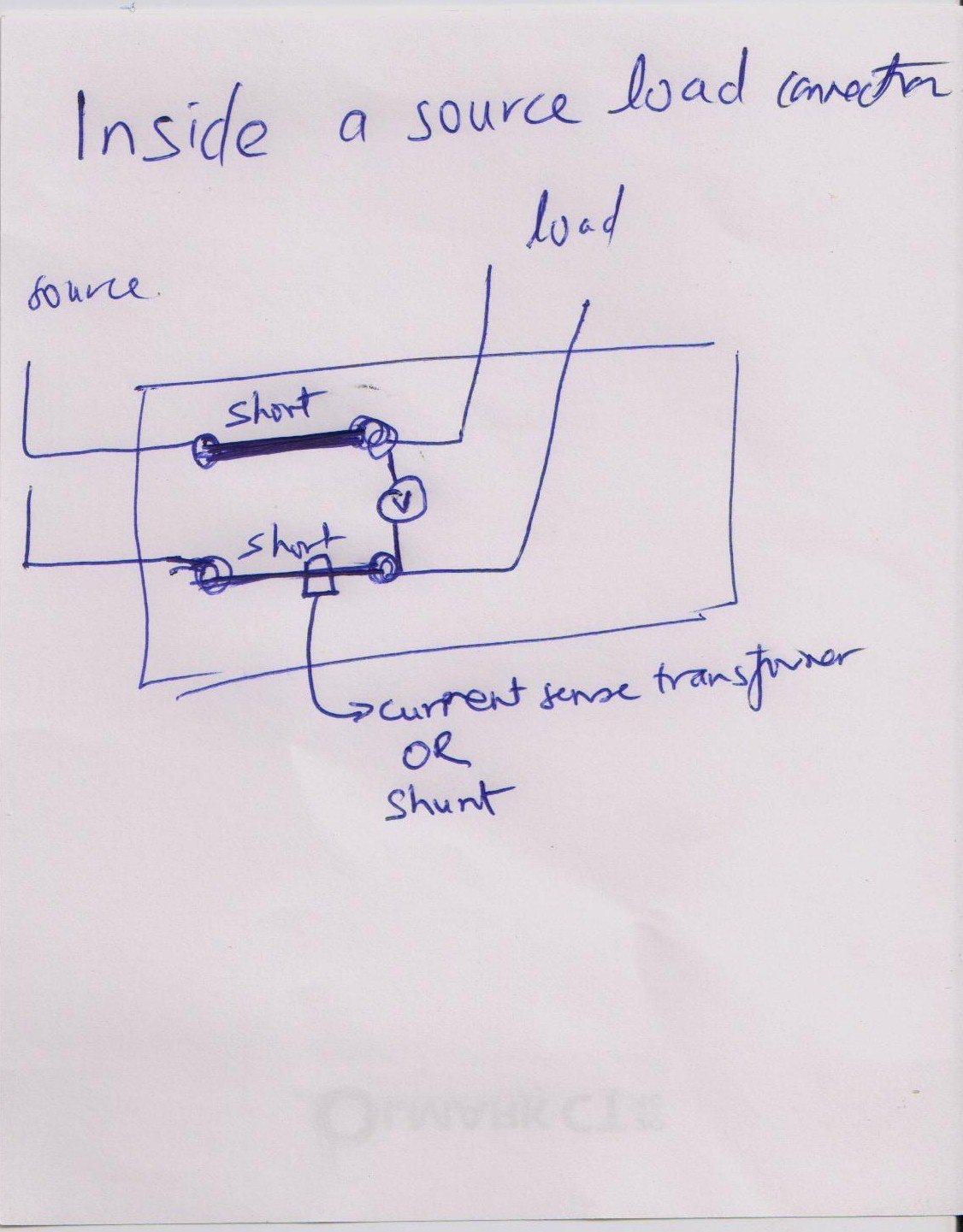

The right image shows voltage and current measurement in source load connection.
