Transformer Testing
Turns ratio, power and loss measurements during transformer routine and type tests.
Products for Transformer Testing

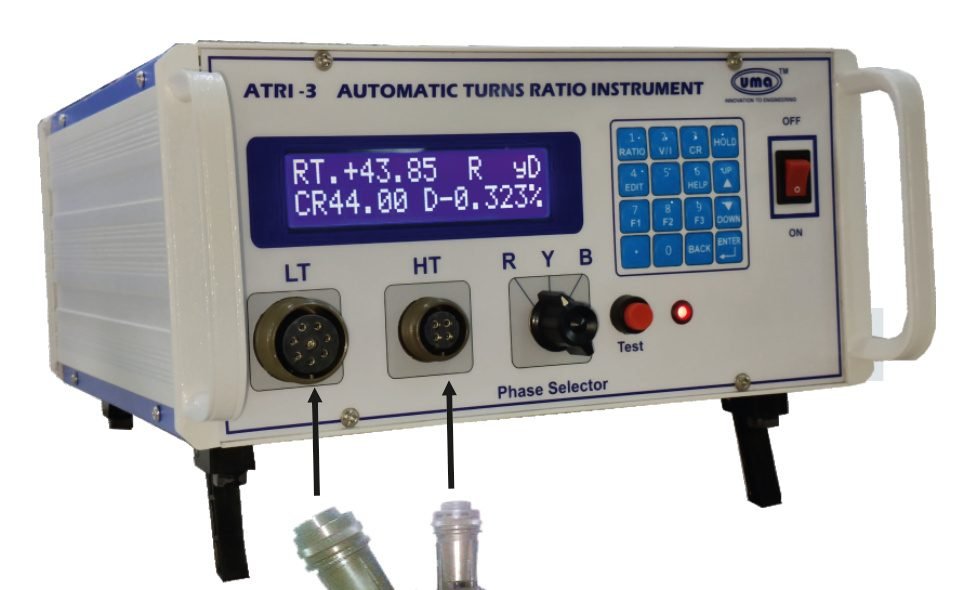

Automatic Turns Ratio Instrument ATRI-3ATRI-3
1.000 to 200.0 · 0.1

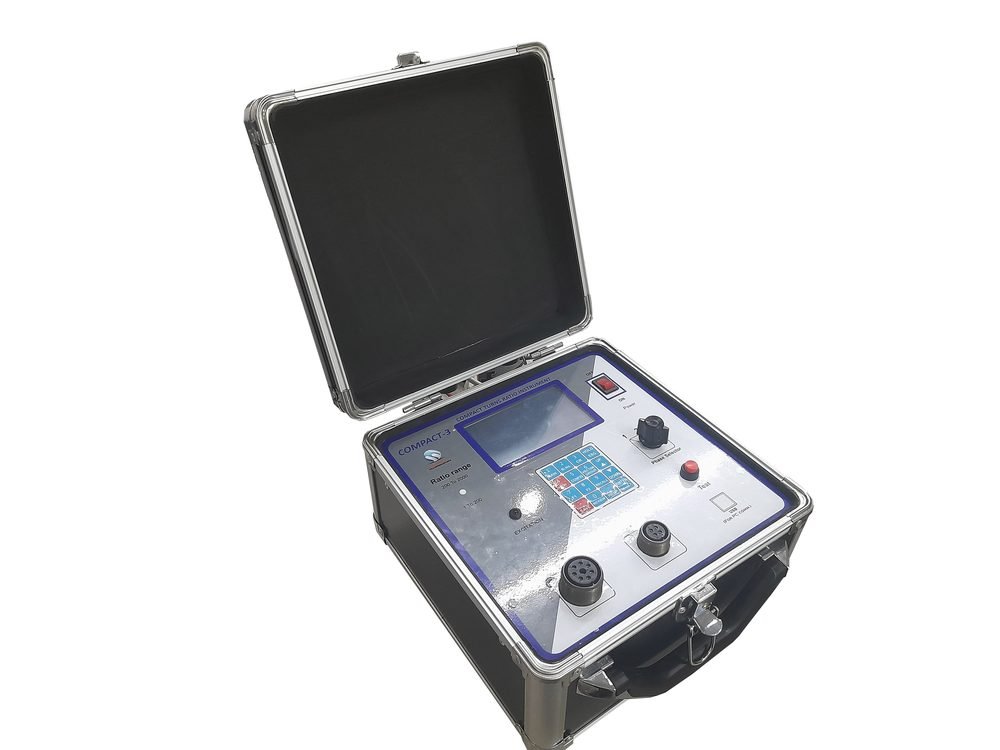

Compact-3 Turns Ratio InstrumentCompact-3
1.000 to 200.0 (up to 2000 available) · 0.1

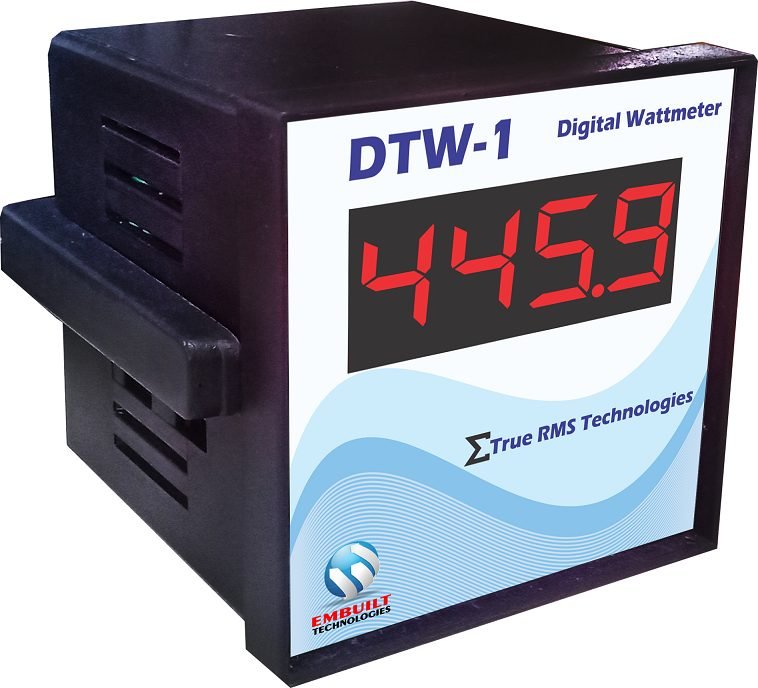

Digital True RMS WattmeterDTW-1
10 – 300 V (500 V available) · 2 / 5 / 10 / 20 / 60 A

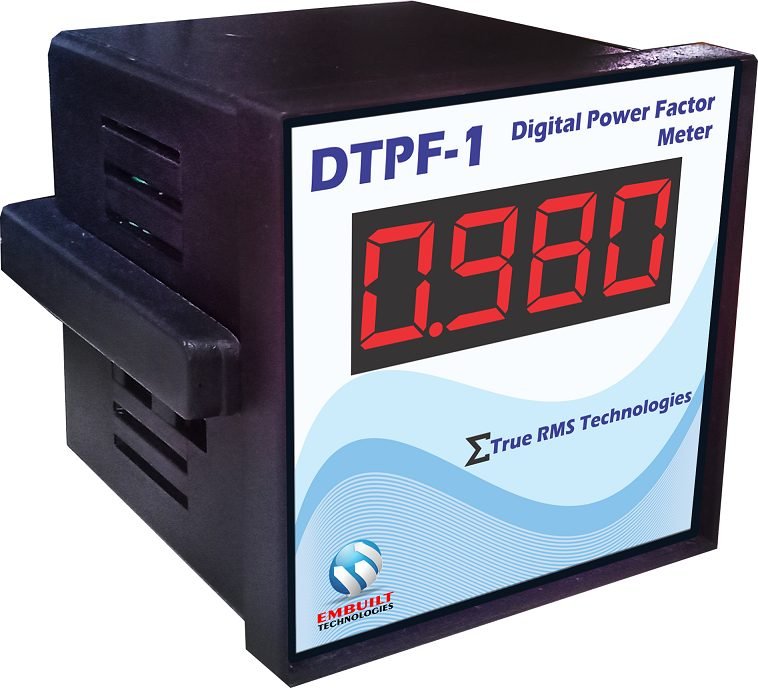

Digital Power Factor Meter (ECO Series)DTPF-1
-0.8 to 0 to +0.8 · 1-phase AC (3-phase available)
